Round Steel Shoring Bar (Fits 2445 - 2845mm)
Couldn't load pickup availability

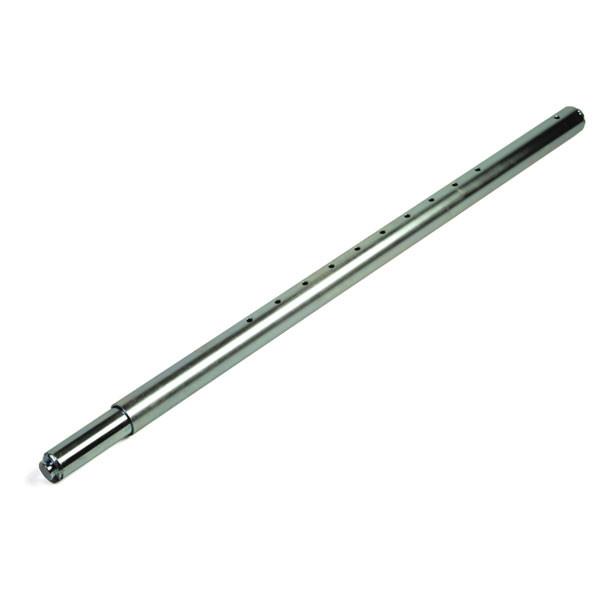

Heavy duty round steel spring loaded shoring bar.
Adjustable length 2445-2845mm.
Diameter is 44mm (too wide to take a coat hanger).
Bar also has 50mm of compression in the spring loaded ends.
End pegs to suit 25mm round hole anchor track.
The bar takes an ultimate load of 460kg equally spread across the bar before bending. PLEASE NOTE: Ultimately the strength relies on the anchor track, installation in the vehicle and construction/rigidity of the vehicle body.

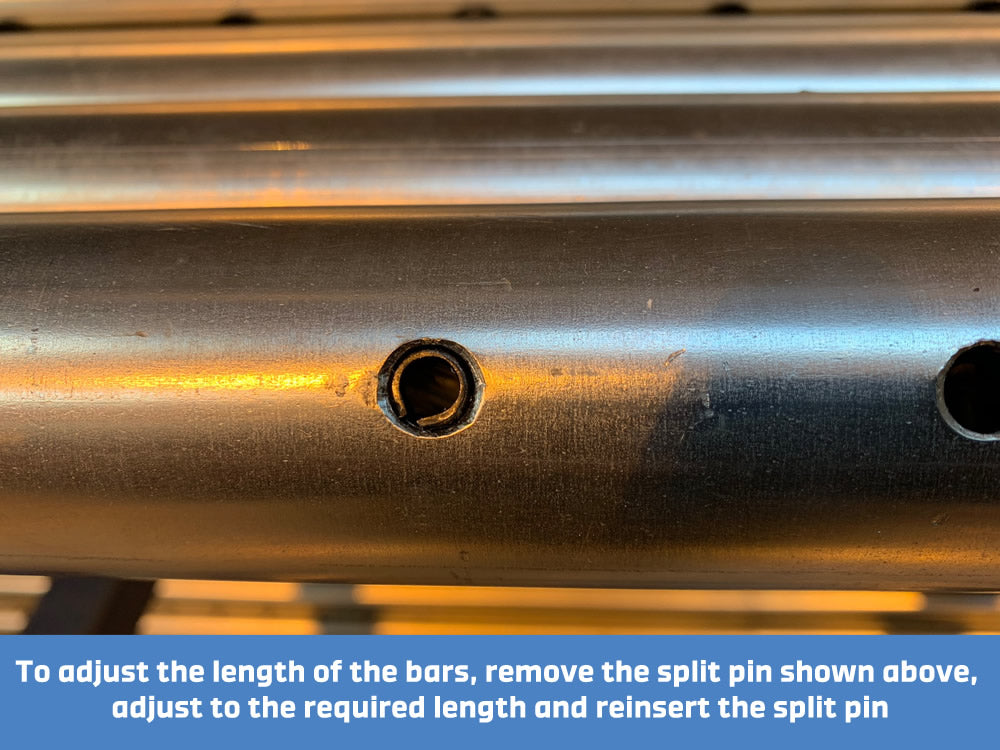

TO ADJUST THE BARS: The bars have a range of holes along the length of the bar. Remove the split pin (as shown in the picture) by lightly tapping with a hammer and screw driver or hole punch. Adjust the bar to the required length and then reinsert the split pin.
